Waste plastic pyrolysis plant

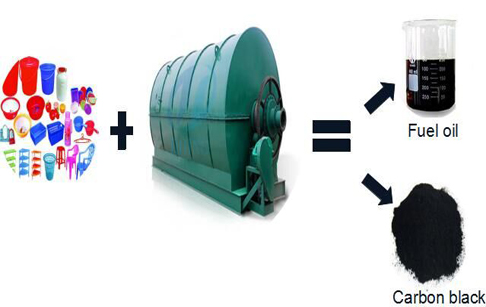

Plastic Pyrolysis process through which waste plastics or tires are converted into industrial fuels.
Plastic pyrolysis take place in a pyrolysis reactor. This pyrolysis reactor allows the following condition in the process:
Feature of plastic pyrolysis plant
1.Heating system of plastic pyrolysis plant
Reactor
Using Q245R boiler steel and the thickness is 16mm and 18mm,the thickness would be changed according the customers'requirments. The main engine use horizontal-type of 360°structure-0.4 r/min
2.Separation system of plastic pyrolysis plant
Gas separator & Depositing tank
Depart the heavy oil and impurities from the oil gas to purify the oil.
3.Condensing system of plastic pyrolysis plant
Generally speaking , for all the raw material all be finished by heating to gasification and cracking, and then cooling to get oil, so they key is the relationship between the yield rate and condensation. So the best and easy way is to increase the condense area so as to get higher yield rate.
4.Dedusting system of waste plastic pyrolysis plant
Desulfurization dedusting, Water film cyclone
Desulfurization dedusting:remove the sulphur(when use coal as fuel) and dust
Water purification: for the second removal.
5.Waste gas recycles system
Water seal & Spray fire gun
In the process of refining oil, when the gas is heated up to 150 , it will produce a large amount of gasCH4& C4H8 ,which cannot convert to liquid at normal temperature and normal pressure. However, these gases can be used as fuel, which is not only environment protection but also energy conservation
6.Carbon black recycles system
Heaving dragon screw conveyer
The solid residual will be left after the catalyst splitting from scrap plastic, approximately take up 5% to 10% of the waste tire.
Advantage of plastic pyrolysis plant
1.We can get tyre oil,carbon black,and steel from waste rubber tyres and plastics.
2. High oil output rate 45%-55%, the rubber up to 60%.
3. Rapid condenser, we have 5 condensers, the cooling area up to 53 square meters, the area larger, the more oil u can get.
4. Large capacity: 6tons / 8tons / 10tons / 12tons / 20tons.
5. Safety device, we have automatic alarm bells with pressure gauge, If pressure gauge more than the pressure, bells will ring.
6. Environmental protection, no pollution, no smell.
7. 5—6 years life, 3 years warranty
Contact:Ms Bonnie
Phone: +86-371-5677 1821
Fax:86-0371-86222525
TEL:+86 158 9380 0169
Email:market@doinggroup.com
Email:oilmachine@doinggroup.com
Skype: bonniezhao2
www.continuouspyrolysisplant.com
www.wastetireoil.com
