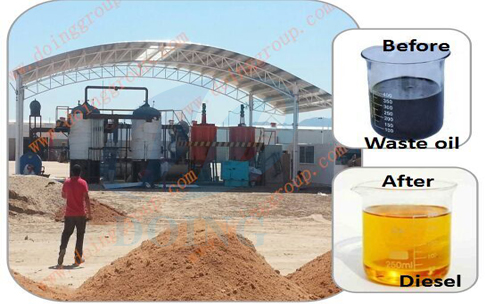

Production introduction of plastic to diesel distillation machine
Plastic
to diesel distillation machine can convert plastic fuel oil into
plastic diesel. The plastic diesel is a very good diesel which is very
close to common diesel. It can be used in diesel generator, tractors,
trucks, agricultural vehicles etc.Feedstock: product of plastic to diesel distillation machine
Product: Plastic fuel oil will be pumped into the vertical reactor of plastic to diesel distillation machine. After finished whole processing, the final products are 85% diesel and the remaining is bitumen.
Working process of plastic to diesel distillation machine
Plastic to diesel distillation machine
Plastic
fuel oil will be heated into oil gas with indirect heating. Then oil
gas will be cooled into diesel. With the processing of color and odor
removal system, diesel quality will be improved a lot.Main features of plastic to diesel distillation machine
1. Fast.
The unique fast heating system is especially designed for shorten working time.
In market, mostly are horizontal reactor or old design for plastic to diesel distillation machine which take about 3-5days to finish one batch.
2. Easy slagging
Vertical reactor make slagging from bottom automatically and fast.
3. Energy saving
Fast heating system keep temperature even after slagging and you can use for next batch so is energy saving.
4. Safe
Strict quality control system and professional safety devices guarantee our plastic to diesel distillation machine running safely and win a good reputation from customers.
5. Environmental friendly
Professional dedusting systems ensure our plastic to diesel distillation machine runs zero pollution.
Technical parameters of plastic to diesel distillation machine
t | ||||||||
NO. | Items | Contents | ||||||
1 | Capacity | 5T/D, 10T/D, 15T/D, 20T/D | ||||||
2 | Raw material | Tire/plastic pyrolysis oil, waste engine oil | ||||||
3 | Structural form | Vertical | ||||||
4 | Outputs | Diesel, asphalt | ||||||
5 | Diesel yield | 80-85% | ||||||
6 | Operating pressure | Normal | ||||||
7 | Material of Reactor | Q245R boiler plate | ||||||
8 | Thickness of Reactor | 16mm | ||||||
9 | Safety standard | Pressure vessel standard | ||||||
10 | Total power | 24.5KW | ||||||
11 | Mode of cooling | Recycled water cooling | ||||||
12 | Required water | 40m3 for recycle use | ||||||
13 | Heating method | Recycled conduction oil heating with fuel heating | ||||||
14 | Discharge way | Automatically | ||||||
15 | Noise dB(A) | ≤85 | ||||||
16 | Running process | Semi-continuous | ||||||
17 | Delivery time | 20days | ||||||
18 | Weight | 20-50T (depends on the capacity) |
