Tyre pyrolysis plant

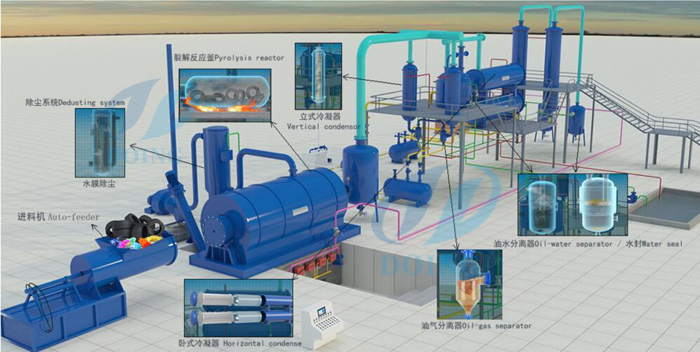

Tyre pyrolysis plant is a kind of machine that adopts advanced pyrolysis techogy that can convert waste tyre to fuel oil ,carbon black and steel wire. the waste tyre pyrolysis plant have the features of safety, energy saving and environmental protection. Taking the batch operating plant for example, waste tyre pyrolysis process is described as follows:
Tyre pyrolysis plant process waste tyre to fuel oil
(1) Put the waste tires into reactor and make reactor rotate clockwise 0.4-0.8 r/min. Seal the feeding inlet door tightly and make sure there is no gas leakage.
(2) Heat the reactor by using coal, charcoal, fuel gas, wood etc. as heating materials. The reactor will be slowly heated, and when the temperature reach about 250 degrees, the oil gas will be formed.
(3) The oil gas coming out from the reactor then goes to condensing system and become liquid oil. The gas which can’t be liquefied under normal pressure will be designed to go back to combustion system through safety device. It can be recycled to heat the reactor as fuel, which will save energy for the whole working process.
(5) After finishing oil production, the temperature of pyrolysis reactor will fall down, when the temperature falls down to 40 degrees Celsius, we can get carbon black and steel wire.
